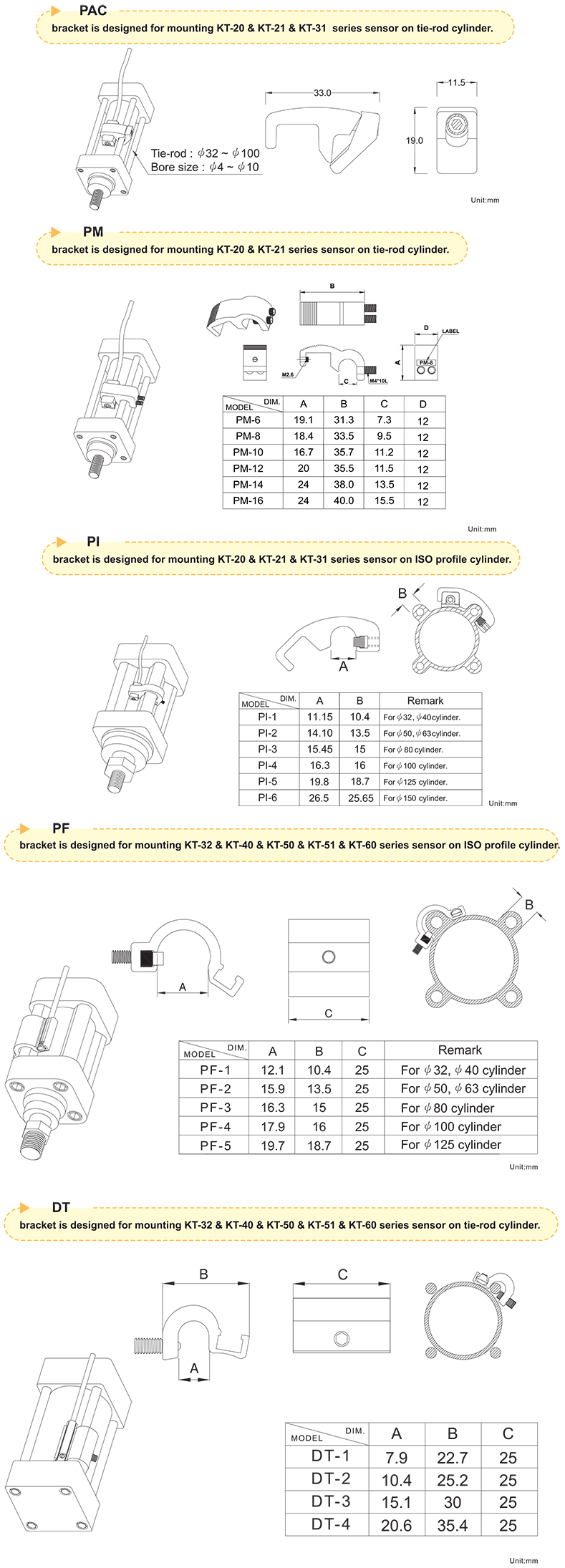

MOUNTING PARTS
(BRACKETS)
|
|
|

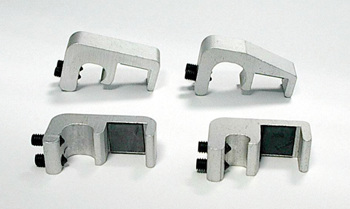

| PM
backet is designed for mounting KT-20 & KT-21 series
sensor on the-rod cylinder. |
|
| |
 |
| |
A |
B |
C |
D |
| PM-6 |
19 |
31.0 |
6.5 |
12 |
| PM-8 |
20 |
34.5 |
8.0 |
12 |
| PM-10 |
18 |
33.0 |
9.5 |
12 |
| PM-12 |
20 |
35.5 |
11.5 |
12 |
| PM-14 |
24 |
38.0 |
13.5 |
12 |
| PM-16 |
24 |
40.0 |
15.5 |
12 |
|
|
|

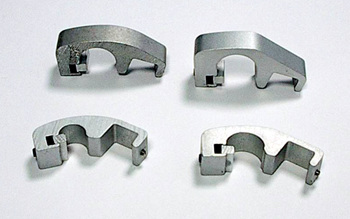

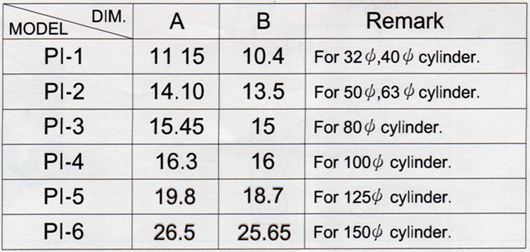

| PI
backet is designed for mounting KT-20 & KT-21 series sensor
on ISO profile cylinder. |
|
 |

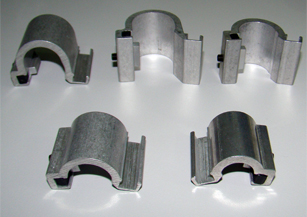

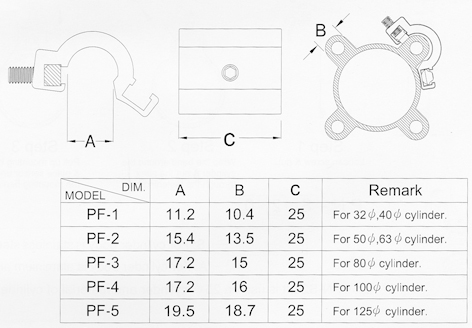

PF |
PF is designed for mounting KT-32 & KT-40 & KT-50 series sensor
on ISO profile cylinder. |
|
 |
 |

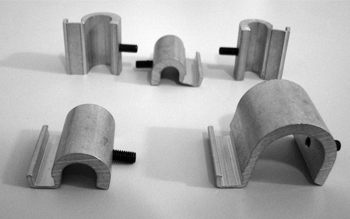

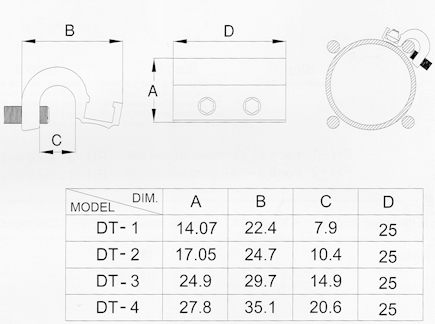

DT |
DT is designed for mounting KT-32 & KT-40 & KT-50 series sensor
on tie-rod cylinder. |
|
 |
| |
