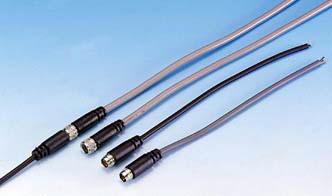

M8 CONNECTOR SERIES



SPECIFICATION
M83R-PVC  (Straight)
M83RL-PVC(Right Angle)
M84R-PVC  (Straight)
M84RL-PVC(Right Angle)

M83R-PUR  (Straight)
M83RL-PUR(Right Angle)
M84R-PUR  (Straight)
M84RL-PUR(Right Angle)
FEMALE  PINOUT
CONDUCTOR COLORS
1: BROWN
3: BLUE
4: BLACK
1: BROWN
2: WHITE
3: BLUE
4: BLACK
 1: BROWN
3: BLUE
4: BLACK		 1: BROWN
2: WHITE
3: BLUE
4: BLACK
CABLE TYPE
PVC
PUR (Polyuretane)
JACKY COLOR

  Grey

Black
CHARACTERISTICS
Oil Resistant, Robotic Grade
Oil And Abrasion Resistance, Robotic Grade
CONNECTOR

Oil Resistant Polypropylene(PP)Body, Nylon Contact Carrier
CONTACTS
Gold Plated Brass
LOCKING NUT
Brass, Nickel Plated
ELECTRICAL RATING
120V AC  /  DC 3Amp. max
CONDUCTORS
24 AWG./0.22mm2, High Flex Stranding, Self-Extinguishing PVC Insulation, 300V
TEMPERATURE
-20°C ~ +80°C
PROTECTION
IP 67/NEMA 6 (Only In Fully Locked Position)

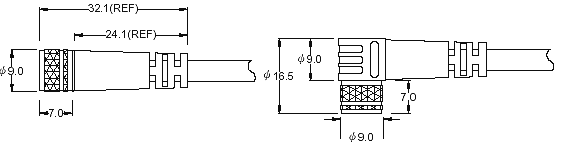

DIMENSION

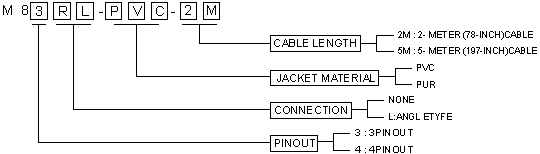

ORDERING  INFORMATION


EXAMPLES:
   M83R-PUR-5M: Straight type female connector with 5-meter (197-inch) PUR cable.
   M83RL-PVC-2M: Angle female connector with 2-meter (78-inch) PVC cable.





M12 CONNECTOR SERIES


SPECIFICATION
M123R -
M123RL -
M124R -
M124RL -

M125R -
M125RL -

FEMALE  PINOUT
CONDUCTOR COLORS
1: BROWN
3: BLUE
4: BLACK
1: BROWN
2: WHITE
3: BLUE
4: BLACK
 1: BROWN
2: WHITE
3: BLUE
4: BLACK
5: GREY
NUMBER OF CONTACTS 3 4 5
RATED VOLTAGE

 250V AC/DC

60V AC/DC
RATED CURRENT 4A
CONTACT MATERIAL

Brass with gold plate
CONTACT BEARER MATERIAL PU
HOUSING MATERIAL PU
HOUSING COLOR Black
CABLE MATERIAL PVC PUR PVC PUR PVC PUR
CABLE COLOR Black
CABLE CONDUCTOR 22AWG
CIRCUIT
LED COLOR
PROTECTION CLASS(IEC60529) IP67
TEMPERATURE RANGE -20~80°C



DIMENSION

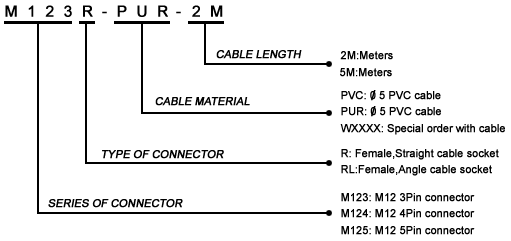

ORDERING  INFORMATION

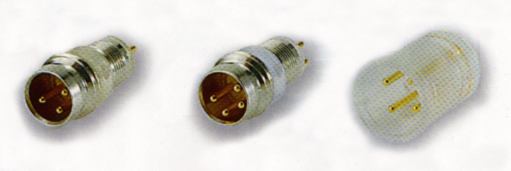

CONNECTOR INSERTS



SPECIFICATION
EO-0019-03
EO-0031

EO-0073
MALE  PINOUT
NUMBER OF CONTACTS 3 4
RATED VOLTAGE

60V AC/DC
RATED CURRENT 3A 4A
CONTACT MATERIAL

Brass with gold plate
CONTACT BEARER MATERIAL P6A(Nylon) Transparent PC Transparent
HOUSING MATERIAL Brass with nickel plate PC Transparent
HOUSING COLOR Silver Transparent
PROTECTION CLASS(IEC60529) IP67
TEMPERATURE RANGE -20~80°C

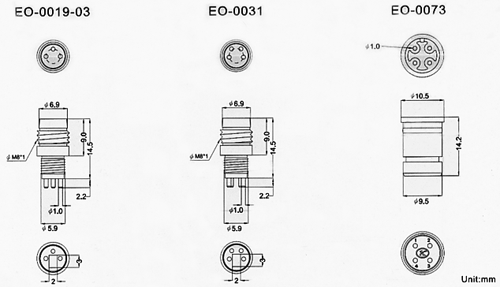

DIMENSION
