KT-06 SERIES
KT-06R, KT-06P, KT-06N, KT-06R-QD, KT-06P-QD, KT-06N-QD

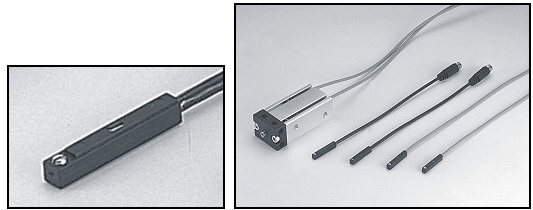

Product Picture
SPECIFICATION
TYPE KT-06R KT-06N KT-06P
CONNECT DIAGRAM
CHARACTERISTICS
WIRING METHOD 2-Wire Type 3-Wire Type
SWITCHING LOGIC SPST, Normally Open Solid State Output, Normally Open
SENSOR TYPE Reed Switch NPN Current Sinking PNP Current Sourcing
OPERATING VOLTAGE 5~120V DC/AC 5~30V DC
SWITCHING CURRENT 50 mA max. 200 mA max.
CONTACT RATING 6 W max. 6 W max.
CURRENT CONSUMPTION _ 20mA @ 24V max. (Switch Active)
VOLTAGE DROP 2.5 V max. 0.5 V @200mA max.
LEAKAGE CURRENT _ 0.01 mA max.
INDICATOR Red LED Red LED Green LED
CABLE 2.8 , 2C , Gray PU 2.8 , 3C , Black PU
TEMPERATURE RANGE -10~70 ¢J
SHOCK 30 G 50 G
VIBRATION 9 G
ENCLOSURE CLASSIFICATION IEC 529   IP67
PROTECTION CIRCUT None Power Source Reverse Polarity; Surge Suppression

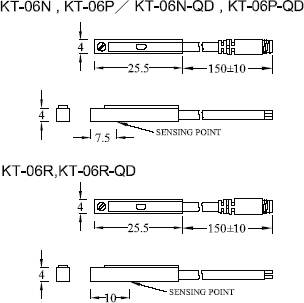

GROOVE DIMENSION DIMENSION QD PINOUT
