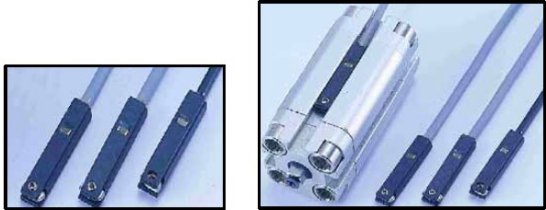

KT-40 SERIES
KT-40R, KT40-R-QD, KT-40N, KT-40N-QD, KT-40P, KT-40P-QD
SPECIFICATION
TYPE KT-40R KT-40N KT-40P KT-40RP
CONNECT DIAGRAM
CHARACTERISTICS
WIRING METHOD 2-Wire Type 3-Wire Type 3-Wire Type
SWITCHING LOGIC SPST, Normally Open Solid State Output, Normally Open SPST, Normally Open
SENSOR TYPE Reed Switch NPN Current Sinking PNP Current Sourcing Reed Switch
OPERATING VOLTAGE 5~120V DC/AC 5~30V DC
SWITCHING CURRENT 100 mA max.
CONTACT RATING 10 W max. 3 W max.
CURRENT CONSUMPTION _ 17 mA @ 24VDC max. 14 mA @ 24VDC max. 25 mA @ 24VDC max.
VOLTAGE DROP 2.5 V max. 1.5 V @100mA max. 0.05 V max.
LEAKAGE CURRENT _ 0.01 mA max.
INDICATOR Red LED Red LED Yellow LED Yellow LED
CABLE 3 , 2C , Gray PU 3 , 3C , Black PU
OPERATING FREQUENCY 200 Hz 1000 Hz 200 Hz
MAGNET REQUIREMENT(NOTE 1.) 40 Gauss Parallel
TEMPERATURE RANGE -10~70
SHOCK(NOTE 2.) 30 G 50 G 30 G
VIBRATION(NOTE 3.) 9 G
ENCLOSURE CLASSIFICATION IEC 529   IP67
PROTECTION CIRCUT None Reverse Polarity; short-circuit None
NOTE: 1. Measuring Standard target: 15.5* 8*5t. (Anisotropy Rubber Magnet)
2. Sin Wave / XˇBYˇBZ 3 Driections / 3 Times Each Direction / 11ms Each Time.
3. Double Amplitude 1.5mm / 10Hz~55Hz~10Hz (Sweep 1min) / XˇBYˇBZ 3 Directions / 1 Hour Each Time.

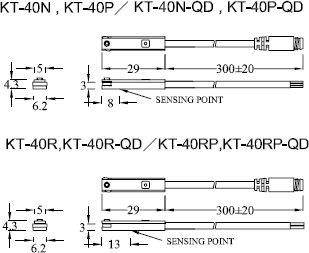

GROOVE DIMENSION DIMENSION QD PINOUT
