KT-09 SERIES
KT-09R, KT-09P, KT-09N, KT-09R-QD, KT-09P-QD, KT-09N-QD

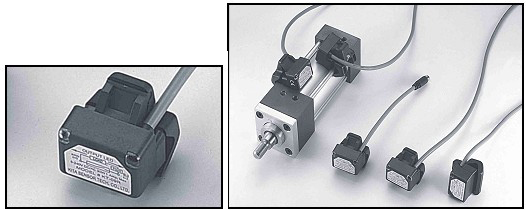

Product Picture
SPECIFICATION
TYPE KT-09R KT-09N KT-09P
CONNECT DIAGRAM
CHARACTERISTICS
WIRING METHOD 2-Wire Type 3-Wire Type
SWITCHING LOGIC SPST, Normally Open Solid State Output, Normally Open
SENSOR TYPE Reed Switch NPN Current Sinking PNP Current Sourcing
OPERATING VOLTAGE 5~240V DC/AC 5~30V DC
SWITCHING CURRENT 1 Amp. max. 1 Amp. max.
CONTACT RATING 30W max. 30W max.
CURRENT CONSUMPTION _ 42 mA @ 24V max. 30 mA @ 24V max.
VOLTAGE DROP 3.5 V max. 1.5 V @ 0.5A max.
LEAKAGE CURRENT _ 0.01 mA max.
INDICATOR Red LED Power LED: Green, Output LED: Red
CABLE 4.5 , 2C , Gray PVC 4.5 , 3C , Gray PVC
TEMPERATURE RANGE -10~70 ¢J
SHOCK 30 G 50 G
VIBRATION 9 G
ENCLOSURE CLASSIFICATION IEC 529   IP67
PROTECTION CIRCUT MOV, Surge Suppression Power Source Reverse Polarity; Surge Suppression

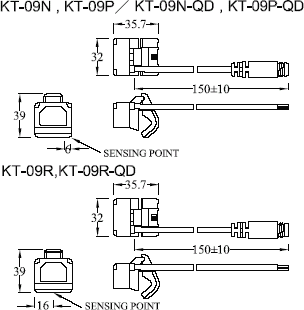

SELF MOUNTING CLAMPS DIMENSION QD PINOUT
