KT-15 SERIES
KT-15R, KT-15P, KT-15N, KT-15R-QD, KT-15P-QD, KT-15N-QD

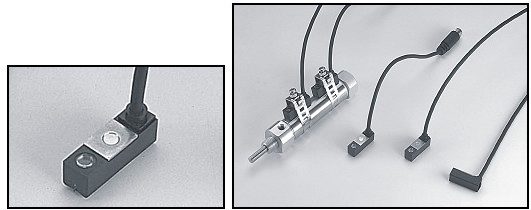

Product Picture
SPECIFICATION
TYPE KT-15R KT-15N KT-15P
CONNECT DIAGRAM
CHARACTERISTICS
WIRING METHOD 2-Wire Type 3-Wire Type
SWITCHING LOGIC SPST, Normally Open Solid State Output, Normally Open
SENSOR TYPE Reed Switch NPN Current Sinking PNP Current Sourcing
OPERATING VOLTAGE 5~240V DC/AC 5~30V DC
SWITCHING CURRENT 100 mA max. 200 mA max.
CONTACT RATING 10 W max. 6 W max.
CURRENT CONSUMPTION _ 22 mA @ 24V max. (Switch Active)
VOLTAGE DROP 3 V max. 0.5 V max.
LEAKAGE CURRENT _ 0.01 mA max.
INDICATOR Red LED Red LED Green LED
CABLE 2.8 , 2C , Black PVC 2.8 , 3C , Black PVC
TEMPERATURE RANGE -10~70 ¢J
SHOCK 30 G 50 G
VIBRATION 9 G
ENCLOSURE CLASSIFICATION IEC 529   IP67
PROTECTION CIRCUT None Power Source Reverse Polarity; Surge Suppression

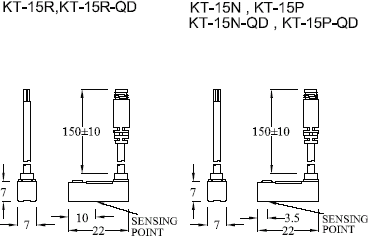

MOUNTAIN CLAMPS DIMENSION QD PINOUT
BK series clamp
