KT-32 SERIES
KT-32R, KT-32P, KT-32N, KT-32RP, KT-32R-QD, KT-32P-QD, KT-32N-QD

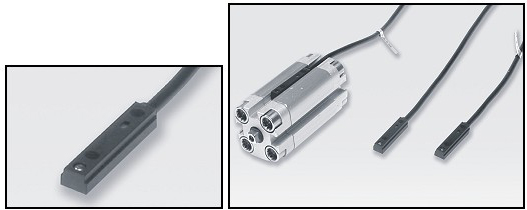

Product Picture
SPECIFICATION
TYPE KT-32R KT-32N KT-32P KT-32RP
CONNECT DIAGRAM
CHARACTERISTICS
WIRING METHOD 2-Wire Type 3-Wire Type 3-Wire Type
SWITCHING LOGIC SPST, Normally Open Solid State Output, Normally Open SPST, Normally Open
SENSOR TYPE Reed Switch NPN Current Sinking PNP Current Sourcing Reed Switch
OPERATING VOLTAGE 5~240V DC/AC 10~30V DC 10~30V DCC
SWITCHING CURRENT 100 mA max. 100 mA max. 100 mA max.
CONTACT RATING 10 W max. 3 W max. 3 W max.
CURRENT CONSUMPTION _ 17 mA @ 24V max. 14 mA @ 24V max. 25 mA @ 24V max.
VOLTAGE DROP 3.5 V max. 2.0 V max. 0.05 V max.
LEAKAGE CURRENT _ 0.01 mA max. 0.01 mA max.
INDICATOR Red LED Red LED Yellow LED Yellow LED
CABLE 3.3 , 2C , Black PVC 3.3 , 3C , Black PVC 3.3 , 3C , Black PVC
TEMPERATURE RANGE -10~70 ¢J
SHOCK 30 G 50 G 30 G
VIBRATION 9 G
ENCLOSURE CLASSIFICATION IEC 529   IP67
PROTECTION CIRCUT None Power Source Reverse Polarity; Surge Suppression None

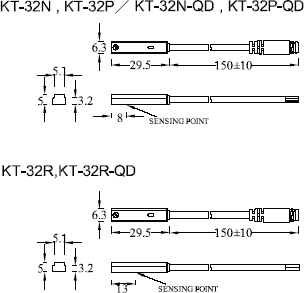

GROOVE DIMENSION DIMENSION QD PINOUT
