KT-11 SERIES
KT-11R, KT-11P, KT-11N, KT-11R-QD, KT-11P-QD, KT-11N-QD

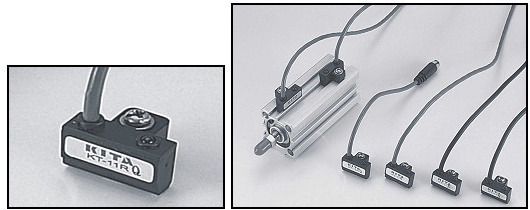

Product Picture
SPECIFICATION
TYPE KT-11R KT-11N KT-11P
CONNECT DIAGRAM
CHARACTERISTICS
WIRING METHOD 2-Wire Type 3-Wire Type
SWITCHING LOGIC SPST, Normally Open Solid State Output, Normally Open
SENSOR TYPE Reed Switch NPN Current Sinking PNP Current Sourcing
OPERATING VOLTAGE 5~240V DC/AC 5~30V DC
SWITCHING CURRENT 100 mA max. 200 mA max.
CONTACT RATING 10 W max. 6 W max.
CURRENT CONSUMPTION _ 22 mA @ 24V max. 20 mA @ 24V max.
VOLTAGE DROP 3.5 V max. 0.5 V max.
LEAKAGE CURRENT _ 0.01 mA max.
INDICATOR Red LED Red LED Green LED
CABLE 3.3 , 2C , Gray PVC 3.3 , 3C , Gray PVC
TEMPERATURE RANGE -10~70 ¢J
SHOCK 30 G 50 G
VIBRATION 9 G
ENCLOSURE CLASSIFICATION IEC 529   IP67
PROTECTION CIRCUT None Power Source Reverse Polarity; Surge Suppression

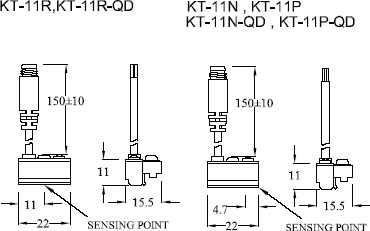

GROOVE DIMENSION DIMENSION QD PINOUT
