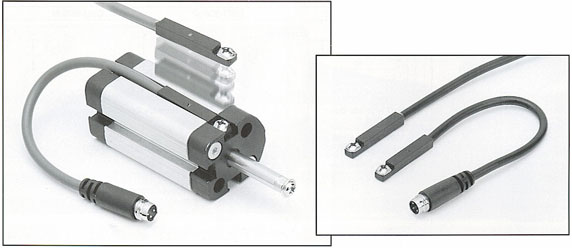

KT-52 SERIES
KT-52R, KT-52P, KT-52N
SPECIFICATION
Part Number KT-52R KT-52P KT-52N



SCHEMATIC

SENSOR TYPE Reed Switch Solid-State Magnetoresistive (MR) Sensor
SWITCHING LOGIC SPST Normally Open Normally Open
OUTPUT _ PNP Current Sourcing NPN Current Sinking
OPERATING VOLTAGE 5~120V DC/AC 50/60 Hz 5~30V DC
SWITCHING CURRENT 100 mA max. 500 mA max.
POWER RATING * 10 Watts (resistive) 15 Watts
VOLTAGE DROP 2.5 V max 2V max
CURRENT CONSUMPTION _ 10 mA@24VCD max 10 mA@24VCD max
LEAKAGE CURRENT _ 0.01 mA max.
LED INDICATOR Red Green Red
CABLE Robotic grade, oil resistant polyurethane (PUR)
OPERATING FREQUENCY 1000 Hz
MAGNET REQUIREMENT
40 Gauss parallel
TEMPERATURE RANGE 14 to 158°F (-10 to +70°C)
SHOCK/VIBRATION 30 G/ 9 G 50 G/ 9 G
ENCLOSURE CLASSIFICATION IP 67 (NEMA 6)
PROTECTION CIRCUT _ Reverse Polarity. Short-Circuit
*WARNING: Never exceed rating (Watt = Voltage x Amperage)

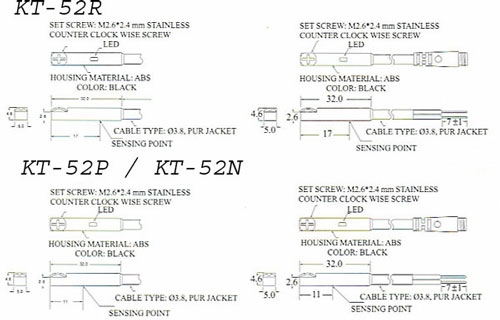

DIMENSION T Slot Profile
