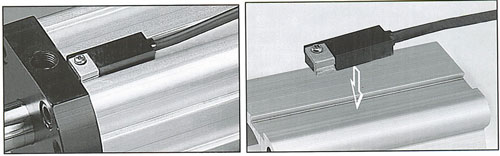

KT-70 SERIES
KT-70R, KT-70P, KT-70N
SPECIFICATION
Part Number KT-70R KT-70P KT-70N



SCHEMATIC

SENSOR TYPE Reed Switch Magneto- Resistive (MR) Sensor
SWITCHING LOGIC SPST, Normally Open Normally Open
OUTPUT _
PNP Current Sourcing
NPN Current Sinking
OPERATING VOLTAGE 5~240V DC/AC 50/60 Hz 5~30V DC
SWITCHING CURRENT 500 mA max. 500 mA max.
POWER RATING * 10 W (resistive) 15 Watts
VOLTAGE DROP 3.0V max 1.5V max @ 0.5V max
CURRENT CONSUMPTION _ 15 mA@24VCD max 20 mA@24VCD max
LEAKAGE CURRENT _ 0.01 mA max.
LED INDICATOR Red
CABLE Robotic grade, oil resistant PVC
OPERATING FREQUENCY 1000 Hz
MAGNET REQUIREMENT
50 Gauss parallel
TEMPERATURE RANGE 14 to 158°F (-10 to +70°C)
SHOCK/VIBRATION 30 G/ 9 G 50 G/ 9 G
ENCLOSURE CLASSIFICATION IP 67 (NEMA 6)
PROTECTION CIRCUT MOV, Surge Suppression Reverse Polarity. Surge Supression
*WARNING: Never exceed rating (Watt = Voltage x Amperage)

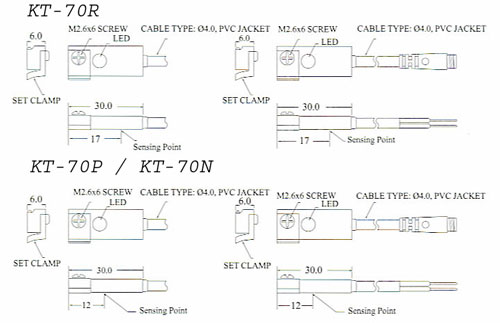

DIMENSION Dovetail Groove Profile
